| SIZE | SHAFT WEIGHT GPI |
SPINE @ 28″ SPAN DEFLECTION IN INCHES |
STOCK LENGTH INCHES |
RPS POINT O.D. INCHES |
BROADHEAD ADAPTER RING (5 GRAINS) | O.D. INCHES |
5MM HALFOUT |
|---|---|---|---|---|---|---|---|
| 700 | 6.1 | 0.700 | 31.5 | 17/64 | BAR 3 | 0.245 | #1 |
| 600 | 7.2 | 0.600 | 30.5 | 17/64 | BAR 3 | 0.253 | #1 |
| 500 | 8.1 | 0.500 |
31 | 17/64 | BAR 3 | 0.256 | #1 |
| 400 | 9.0 | 0.400 | 31.5 | 17/64 | BAR4 | 0.264 | #2 |
| 340 | 9.5 | 0.340 | 32 | 9/32 | BAR5 | 0.267 | #2 |
| 300 | 10.7 | 0.300 | 32.5 | 9/32 | BAR6 | 0.275 | #2 |
| 260 | 11.5 | 0.260 | 34 | 9/32 | BAR6 | 0.280 | #2 |

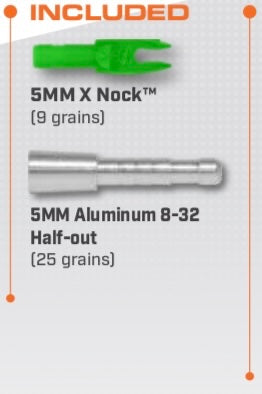

• 5mm Aluminum 8-32 half-out included (25 grains)
• Pre-installed X Nock
• Straightness: ± .006”
• High-strength carbon-composite fibers
-Podium Archery can custom cut your arrow shafts for you. Please refer to the custom arrow builder to request a length. |
Email us: svaorders@gmail.com
Forward of Center balance describes the percentage of the arrow’s total weight that is located in the front half of the arrow.
