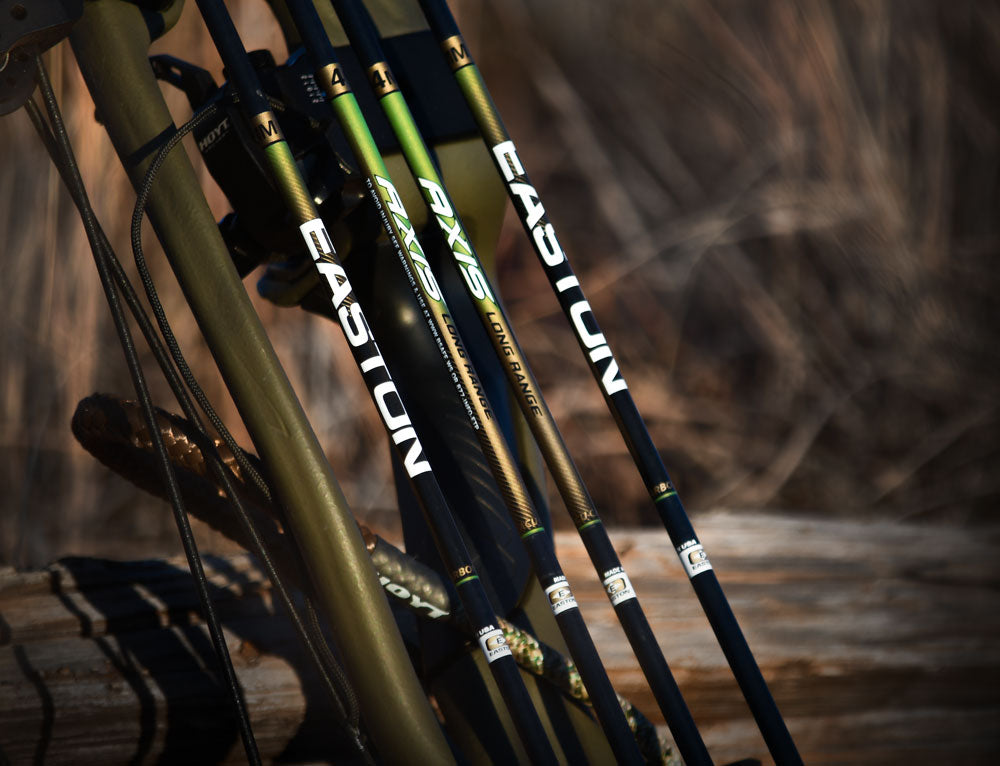

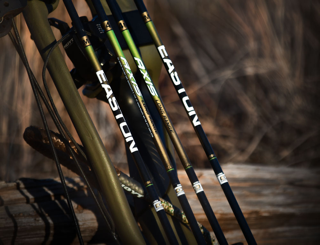

4MM AXIS™ FLETCHED LONG RANGE OR FLETCHED LONG RANGE MATCH GRADE!
Industry-leading carbon AXIS now available in a 4MM micro-diameter. The AXIS 4MM is engineered with a specific 100% carbon-fiber layup for increased velocity. Includes Easton’s new Aluminum point outsert to boost both strength and front-of-center accuracy.
DETAILS:
- 4mm micro-diameter uniform ACU-Carbon fiber construction
- Pre-installed 4mm Microlite nocks
- Straightness: .003"
- Weight: 400 spine 7.4 gpi | 340 spine 8.3 gpi |300 spine 9.3 gpi | 250 spine 9.8 gpi
- Includes 8/32 Easton 4MM Half-Outs (Aluminum) #2070887 for optimum FOC
- Weight: 50 grain
- Precise two-point interface with shaft increases strength
- 1/16" +/- shaft engagement under half out
- Spine specific construction allows for the tightest tolerance between components
- Non-reflective black anodized finish
- Adds 1" to carbon length
- 400 spine use #1 | 340 spine use #2 | 300 spine use #4 | 250 spine use #4
- Compatible with Easton 4MM Titanium Half-Out #2070807
- Weight: 55 grains
- Uses 5/16" diameter field point
| SIZE | SHAFT WEIGHT GPI |
SPINE @ 28″ SPAN DEFLECTION IN INCHES |
STOCK LENGTH |
DEEP 6 FIELD POINT 100/125 GRAINS |
O.D. INCHES |
4MM HALFOUT |
|---|---|---|---|---|---|---|
| 400 | 7.4 | 0.400 | 31.5″ | DP6-4 | 0.229 | #1 |
| 340 | 8.3 | 0.340 | 32″ | DP6-4 | 0.234 | #2 |
| 300 | 9.3 | 0.300 | 32.5″ | DP6-6 | 0.241 | #3 |
| 250 | 9.8 | 0.250 | 33″ | DP6-6 | 0.244 | #4 |
ABOUT THE PRODUCT
4mm Axis
4mm Axis Match Grade
SPECIFICATIONS
- Includes NEW aluminum point outserts (50 grains)
- Micro-Diameter, 100% carbon hunting arrow- increased velocity
- Reduced friction in flight and at impact to offer optimized FOC, enhance target penetration, and better accuracy at long range
- 4 popular hunting spine sizes- 250, 300, 340, and 400
- 4MM nocks pre-installed
- Made in USA
- Straightness: +/- .003″ [Match Grade: +/- .001″]
