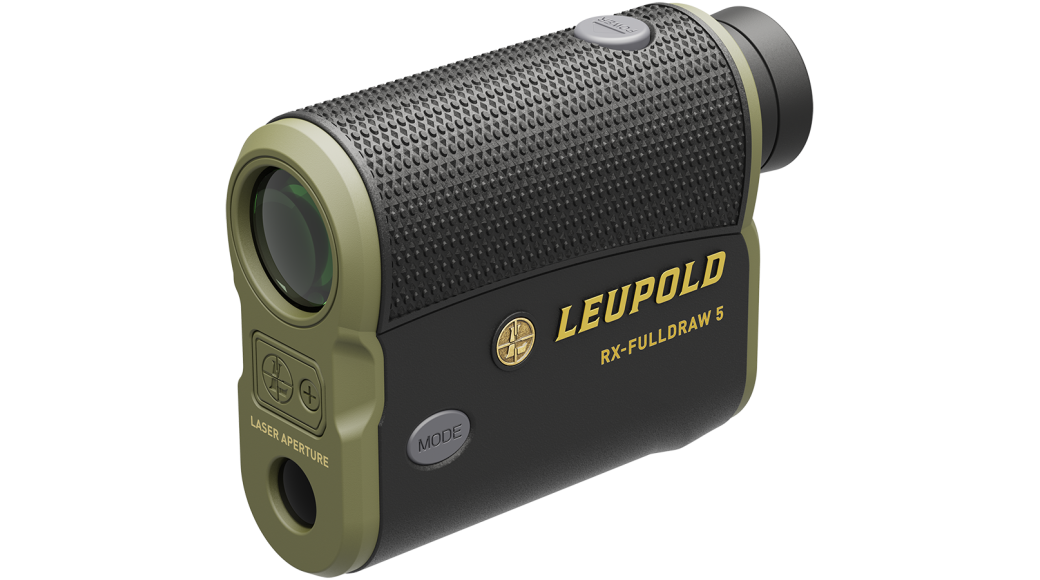

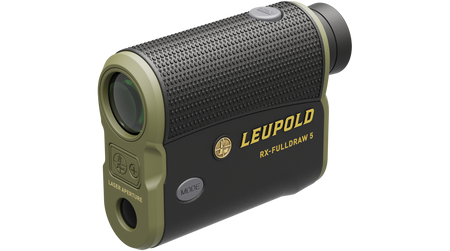

Your bow is custom built to suit your needs, and your rangefinder should be too. The RX-FullDraw 5 combines the lightning-fast accuracy of Leupold's DNA® engine with the acclaimed Archer's Advantage™ software, making it the most advanced archery rangefinder on the market. Using your bow's velocity, peep height, arrow weight, and the angle of your shot, the RX-FullDraw 5 calculates laser-accurate ranges based on your specific setup — taking the guesswork out of making the perfect shot every time.
Flightpath™: Don't know if you have a clear shooting lane? Flightpath technology eliminates doubt by showing potential arrow obstructions out to a typical distance of 85 yards, with a high-point indication so you know exactly where your arrow will crest.
Features
- Leupold DNA® engine with Archer's Advantage™ ballistic software, custom-tuned to your bow's velocity, peep height, and arrow weight
- Flightpath™ technology displays potential arrow obstructions and your shot's high point out to ~85 yards
- Bright Red OLED display with adjustable brightness for low-light performance
- Line of Sight (LOS) mode for straight-line distance
- Last Target mode cuts through rain, fog, and snow for a reliable read
- 3 selectable reticles
- Accepts bow velocities from 170–550 fps
- 100% waterproof, fog proof, aluminum housing built for extreme climates
- Battery included
Specifications
- Magnification: 6x
- Objective aperture: 22mm
- Max range – reflective targets: 1200 yd / 1097 m
- Max range – trees: 1100 yd / 1006 m
- Max range – deer: 900 yd / 823 m
- Minimum range: 6 yards
- Accuracy: ±0.5 yd to 125 yd, ±2 yd to 1000 yd
- Angular field of view: 6° (315 ft @ 1000 yd)
- Eye relief: 17mm | Diopter range: -3 to +3
- Weight: 7.5 oz (213 g)
- Dimensions (L x H x W): 3.8 x 2.9 x 1.3 in
- Battery: CR2, 3000+ actuations
- Laser classification: Class 1M
- Warranty: 2 years
Part #182444
